Description
Short Description:

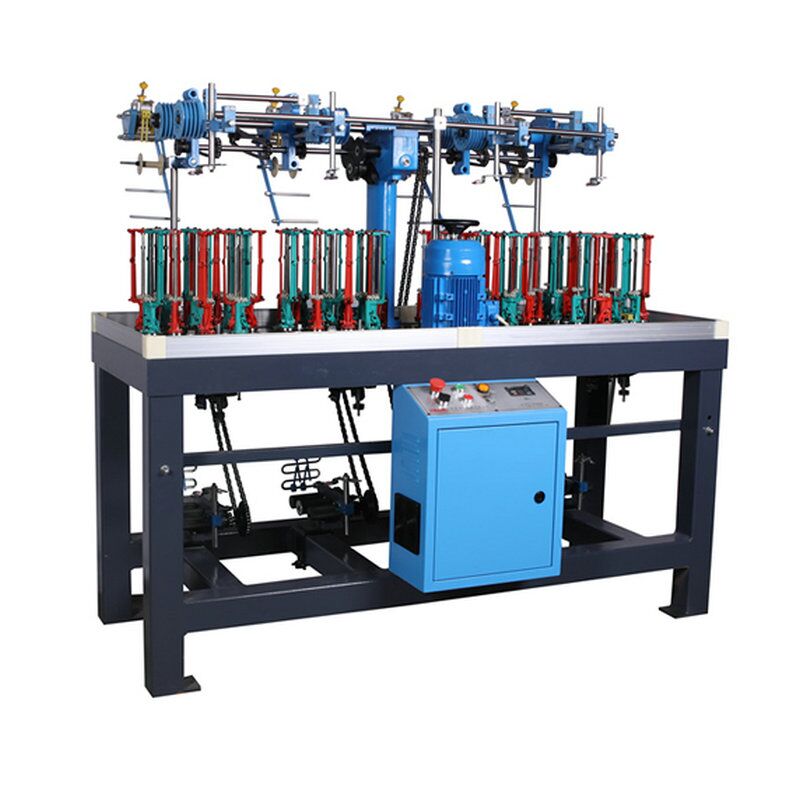

It is mainly used for rope cords braiding machine ,it can produce many different products in various fields such as all kinds of shoelaces, elastic cord, round rope, and decorative ribbons and elastic bands, clothes ropes, security lines and pet neck line, Sports&Leisure accessory, fish thread etc.
| GF90-16/4L | |
| Bobbin Dimension | φ48*140 |
| Head Quantity | 4 |
| Spindle Per Head | 16 |
| Power(kw) | 0.75 |
| Max Horn Gear Speed(R.P.M) | 330 |
| Voltage | 220V/380V/AC,50/60Hz |
Product Detail:
The High Speed Braiding Machine is engineered with precision and utmost attention to detail. Each part of this machine is carefully selected, taking into account the highest standards of quality and reliability. From the robust frame to the advanced motor, every element is built to withstand the rigorous demands of the textile production process, guaranteeing exceptional durability and consistency.
- Base casting was machined in machining center after aging treatment to ensure the flatness.
- Rotor nylon pad was casted by nylon 66 with imported wearing-grease to make it last long.
- Core shaft rotor(impeller) uses ductile iron 600, firstly machined in machining center, high-frequency treatment on its surface to enhance its hardness, then machined by precision grinder.
- Panel uses ductile iron 800, was machined in machining center after aging-treatment to ensure its precision and wearing.
- Tolerance of fit between Spindle base and impeller is controlled within 0.03mm.
