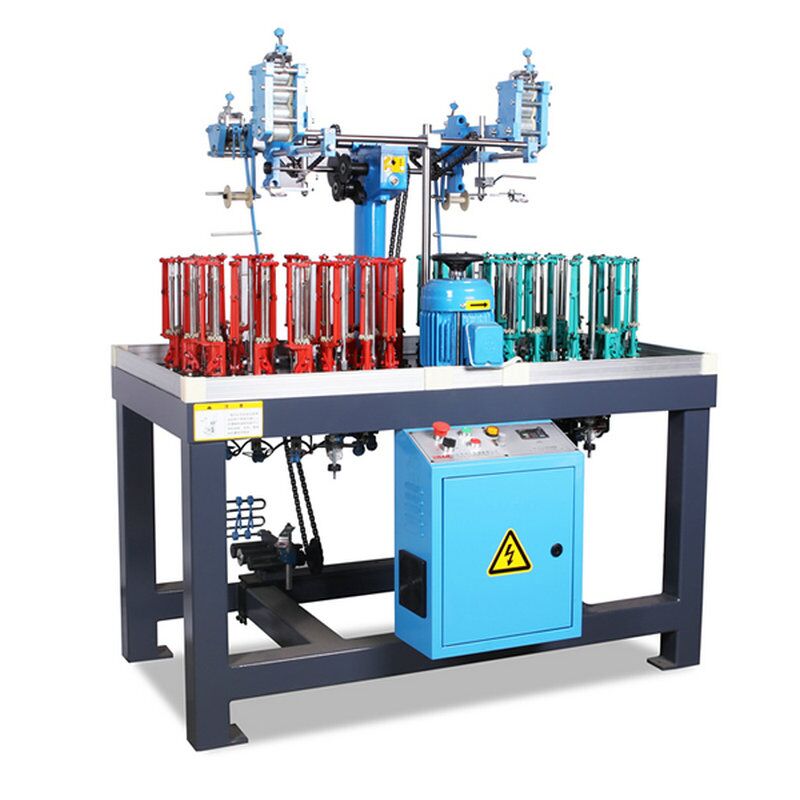

High Speed flat rope braiding Machine for shoe lace braiding shoelaces

Short Description:

This is high speed braiding machine,it is widely used to produce flat belt,elastic belt,shoelace,bandlet,underwear blet and etc.


    Product Details


    Product Detail:

    The machine is equipped with yarn break stop automatically device and frequency converter. The machine has the characteristics of high efficiency, safety and easy operation.

    Model Spindle Qty Head Qty Power Max Horngear Speed Bobbin Size
    (kw) (rpm/min) (mm)
    GF90-9/8 9 8 0.75 330 φ48*140
    GF90-13/4 13 4 0.75 330 φ48*140
    GF90-17/4 17 4 0.75 330 φ48*140
    GF90-21/2 21 2 0.75 330 φ48*140
    GF90-21/4 21 4 1.10 330 φ48*140
    GF90-25/2 25 2 0.75 330 φ48*140
    GF90-33/2 33 2 0.75 330 φ48*140

    Main Features

    • The Machine is High speed and still noiseless.
    • Space saving, because of compact design.
    • The yarn packages, generally available in cone form, can directly mounted on creel and fed to the machine.
    • Stop motion fitted for detecting the yarn.
    • Density of produced cord is adjustable by change pitch gears system.
    • make different size of products by changing the pitch gears.
    • adopting frequency control motor which is easy to control the speed.
    • auto stop system has a sensitive reaction, when the yarn is over or breaks, the machine will stop automatically, which reduce the waste of the yarn. So when there is nobody works near the machine, it is also safe. This device lower the labor cost and increase the production.
    Final product display(1)
    Final product display(1)
    Final product display
    Final product display
