Description

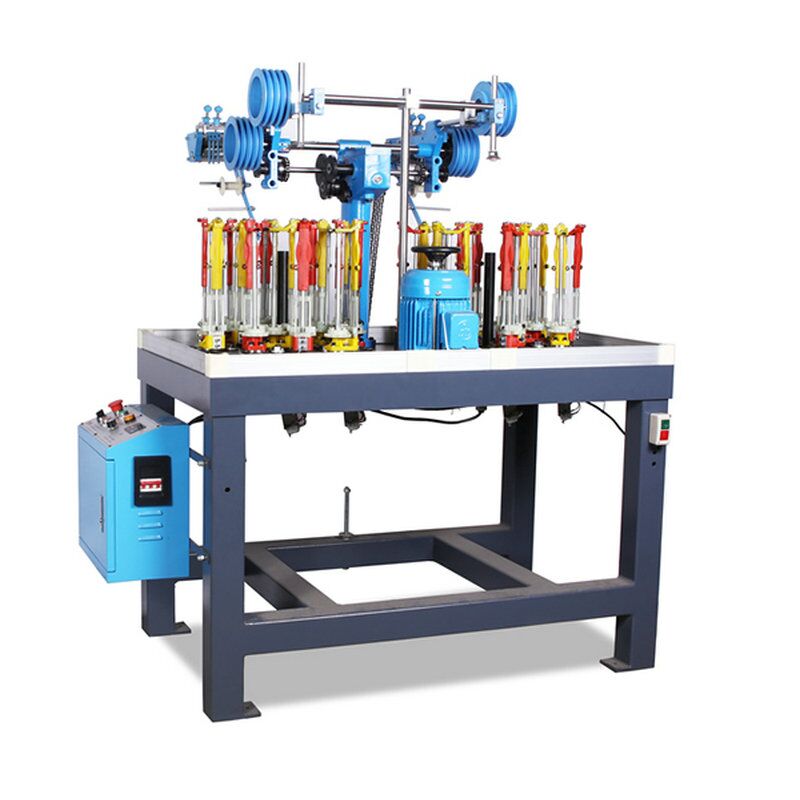

Product Detail
Advantage:
This serie braiding machines adopt high-frequency quenching treatment, which make the key parts high strenghth, high wear resistance. With frequency control, yarn stop sensor and rubber feeder, this is special designed.
Material:
Nylon,Fiber yarn,Fiber glass,Stainless steel wire,etc.
| Model | Spindle Qty | Head Qty | Power | Max Horngear Speed | Spindle Model | Bobbin Size |
| (kw) | (rpm/min) | (mm) | ||||
| GF130-16/2 | 16 | 2 | 0.75 | 330 | B | Φ70*210 |
| GF130-24/1 | 24 | 1 | 1.10 | 330 | B | φ70*210 |
| GF130-32/1 | 32 | 1 | 1.10 | 330 | B | φ70*210 |
| GF130-40/1 | 40 | 1 | 1.10 | 330 | B | φ70*210 |
| GF130-48/1 | 48 | 1 | 1.50 | 330 | B | φ70*210 |
Machine Detail Show
Advantages:
- Base casting was machined in machining center after aging treatment to ensure the flatness.
- Panel uses ductile iron 800, was machined in machining center after aging-treatment to ensure its precision and wearing.
- Core shaft rotor(impeller) uses ductile iron 600, firstly machined in machining center, high-frequency treatment on its surface to enhance its hardness, then machined by precision grinder.
- Tolerance of fit between Spindle base and impeller is controlled within 0.03mm.
- Rotor nylon pad was casted by nylon 66 with imported wearing-grease to make it last long.
Finished Product Show
