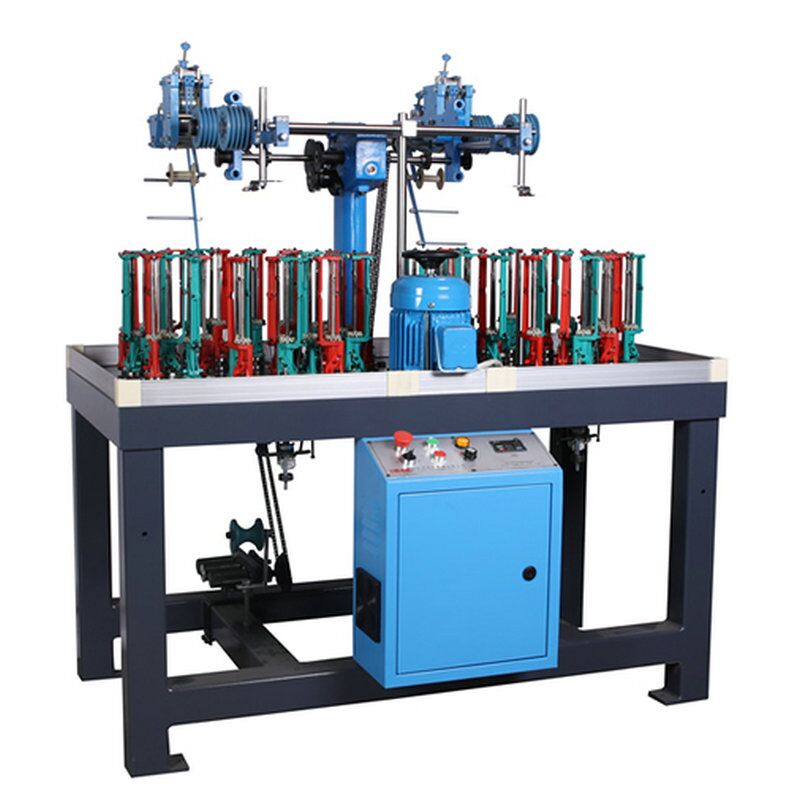

Hollow Round Cord Shoelace Rope Crochet Knitting Making Maker Weaving Braiding Machine

Short Description:

The machine is suitable to produce different size and material of 8, 16, 24, 32, 48 strands braided rope, which is widely used in shoelace, fishing line, sports rope, bungee rope, skipping rope, climbing rope, pet rope etc. The machine is equipped with yarn break stop automatically device and frequency converter. The machine has the characteristics of high efficiency, safety and easy operation.


    Product Details


    Product Detail:

    We are thrilled to present our latest innovation, the Superior-Quality Spinning Machine, which is designed to meet the demanding needs of the textile industry. With its high-quality parts and reasonable mechanism, this machine ensures a stable performance and a longer service life compared to its counterparts.

    Model Spindle Qty Head Qty Power Max Horngear Speed Bobbin Size
    (kw) (rpm/min) (mm)
    GF90-12/4 12 4 0.75 330 φ48*140
    GF90-16/4 16 4 0.75 330 φ48*140
    GF90-16/4L 16 4 0.75 330 φ48*140
    GF90-24/2 24 2 0.75 330 φ48*140
    GF90-32/2 32 2 0.75 330 φ48*140
    GF90-36/2 36 2 1.10 330 φ48*140
    GF90-40/2 40 2 1.10 330 φ48*140
    GF90-44/1 44 1 0.75 330 φ48*140
    GF90-48/1 48 1 0.55*2 330 φ48*140
    GF90-48/2 48 2 1.10 330 φ48*140


    • Humanized design, safe and simple operation, direct and convenient machine maintenance.
    • The reasonable structure of the walking horse spindle makes it easier and faster to replace the bobbin and adjust the elasticity.
    • Synchronous feeding of the core, automatic stop control of the core breaking yarn, saving worry and time.
    • The motor is controlled by frequency converter. Its speed can be continuously changed and overload protection can be provided.
    • The standard parts supply and perfect after-sales service will provide the normal operation of your machine Strong guarantee.
    • The automatic yarn breaking and power off device of this machine is fast and accurate
    • All machines accept OEM

    Application Show:

    round rope lace braid machine
    round rope lace braid machine
    safety rope high speed braiding machine
    safety rope high speed braiding machine


    Custom FAQs

    You may expect eagerly your products stand out in the market,How to come true your business goal? Look no further!Gufan is here to provide you with tailored solutions that will open up new horizons for your business.So here are some frequently asked questions:

    Undoubtedly, you can share your story and your products’ request.We can process the supply of tailor-fitting solutions for textile machines is instrumental in enabling manufacturers to achieve their creative and branding goals.This not only adds value to their products but also contributes to the overall growth and success of their business.

    Yes. for the spare parts,we can supply the samples for you to check quality free for you.Your company only undertake courier charges.

    For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

    Our prices are subject to change depending on supply and other market factors. We would like to  send you an updated price list after getting your inquiry for further information.

    The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By sea the freight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
